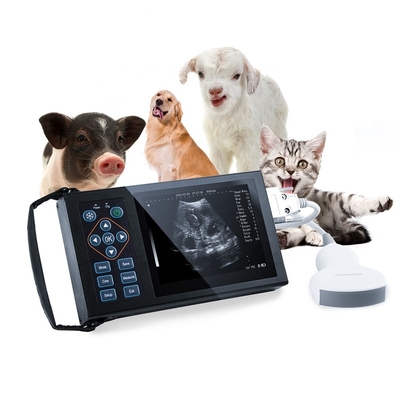

A10 Animal Device Handle Portable Laptop Livestock Digital USB Sonoscape Machine Ultrasound Scanner Instruments Device Veterinarian Animal Ultrasound

1.0 Pieces
MOQ
A10 Animal Device Handle Portable Laptop Livestock Digital USB Sonoscape Machine Ultrasound Scanner Instruments Device Veterinarian Animal Ultrasound
Features Gallery Product Description Request A Quote
Features
Specifications
Model Number: A10
Properties: Obstetric Appliances
Product Name: Veterinary Ultrasound Scanner
Type: Portable Ultrasound Scanner
Usage: Veterinary Ultrasound Scanner
Material: Full Mettle Shell
Certificate: CE/FSC/ISO13485
Applicable Object: Pigs, Sheep, Dogs, Cats
Use For: Test Pregnance, Numbers Of Births, Uterine Disease
Display: 5.6 Inch LCD HD Display
Feature: Animal Device
Warranty: 1 Year
Basic Infomation
Certification: CE/FSC/ISO13485
Model Number: A10
Payment & Shipping Terms
Packaging Details: Suit case and master carton
Supply Ability: 50000 Box/Boxes per Month
Product Description
Product Description
Product Name
A10 Full Digital Portable Veterinary Ultrasound Scanner machine
Material
High strength aluminum alloy metal shell
Function
Test Pregnance, numbers of births, Uterine disease
Applicable for
Pigs, Sheep, Dogs, Cats

    • Full Digital Veterinary Ultrasound Scanner
> Applicable for Pigs, Sheeps, Dogs, Cats
> 5.6-inch high-definition screen,
>High strength aluminum alloy metal shell.
> Waterproof electronic convex array probe. >Sixteen colors can be adjusted
>Video playback function
> Fast Backfat measurement and display
> Test Pregnance, numbers of births, Uterine disease
> Support external U disk, monitor, printer, etc
> Support multi-language customization
> Normal power is less than 9W
Details Images
The A10 full digital Vet ultrasound scanner is with high quality body and spare parts.
Fully waterproof electronic convex array probe for perfect protect of probe
Strong aluminum alloy metal shell for long life of device
5.6-inch high-definition screen (double screen) for clear view
Product Usage

Main Test Function :

>Pregnance,


>Numbers of births,


>Uterine disease

Applicable for Animals :

>Pigs

>Sheep

>Dogs

>Cats
BACK FAT Measurement:
Fast measurement of backfat

Automatically display of backfat
Various type of port for external interface:
>Udisk

>Monitor

>Printer

>USB
Product Paramenters
Physical Spec
Host size
206x120x35 mm
Weight:
950G
Body material
Aluminum alloy metal shell
Scanning mode
convex array scanning
Interface
USB interface, PAL-D / NTSC video, VGA
Battery
Lithium battery, 18650 standard cell, work for about 4 hours







Display
Size:
5.6-inch LED display
Display
Display mode:
B, B + B, 4b, B + m, m;
Max display depth
270mm
Resolution
Lateral ≤ 2mm, axial ≤ 1mm
Character display
Gain, frequency, dynamic, date, time
Display magnification
16 display modes
Movie playback
256 frame playback, select any image and save frame by frame
Image rotation
Image can be flipped up, down, left and right
Image processing
Gamma correction (0-7), Frame correlation (0-3),
Line correlation (0-5),
Edge enhancement (0-3),
Left and right flip (0-1),
Sixteen kinds of pseudo color processing
Innotation function
Convenient for text and body mark annotation
More Prameter
Electron focusing
4 stage electron focusing
Frequency conversion
Five section frequency conversion
Blind area:
≤ 4
Geometric accuracy
Transverse ≤ 5%, longitudinal ≤ 5%
Near field adjustment
- 31 ~ 0
Far field adjustment
0 ~ 31
Routine measurement
Distance, perimeter, area, volume and angle
Special measurement
Heart measurement and lean meat rate measurement;
Obstetric measurement of 8 kinds of animals
Dynamic range
0-135db

More function
Grid ruler and point ruler, which can read the size of the detected object quickly
Organization harmonic, histogram
Product packaging
