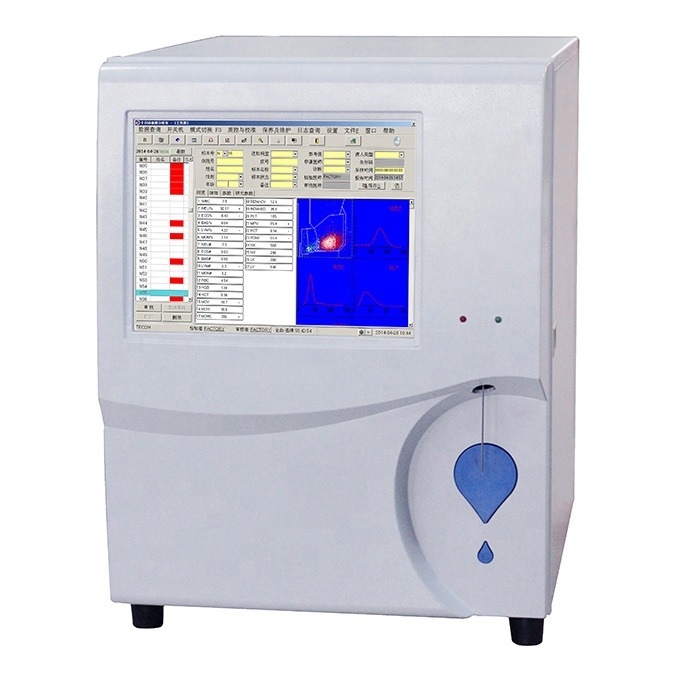

China 5 Part Medical Hematology Test Machine Automatic Hematology Analyzer ZK-HA-8510

•12.1'' TFT Touch Screen

•27 parameters, 1 scattergrams and 4 histograms

•Technology:

Electrical Impedance

Double hydrodynamic focusing

Optical solid state LASER scattering

Wide angle light scatter

High efficient light collector (patented)

•Up to 60 samples per hour

•Original reagent, control and calibration

•Easy to operate: Friendly and Intellective Software

Principle:

l Optical solid state LASER scattering wide angle light scatter, high efficient light collector (patented), electrical impedance, double hydrodynamic focusing

Parameters:

l 27 parameters: WBC, LYM#, MONO#, GRA#, LYM%, MONO%, GRA%, RBC, HGB, HCT, MCV, MCH, MCHC, RDW, PLT, MPV, PDW, PCT and Histogram for WBC, RBC, PLT

l 1 Scattergrams: WBC interpreted scattergram

l 4 histograms: RBC, PLT, WBC, cyto

Throughput :

l Up to 60 samples per hour

Display:

l 12.1 inch touch screen

Samples Types:

l Whole blood, PLT only, HB only Capillary predilution, Diluent, control, calibrator

Performance

Sample Volume:

l Prediluted: 20μL

l Whole blood: 10μL

Carryover:

l WBC<0.5%, RBC<0.5% , HGB<0.5%, PLT<1.5%

Multi-Language:

l Chinese, English for optional and others can be customized

Data Storage Capacity:

l Up to 100,000 results including numeric and graphical information

Printout

l External laser printer/inkjet printer, various printout formats and user-defined formats

Operation Environment:

l Temperature: 18-32°C

l Humidity: 0%-85%

Power Requirement:

l AC100-240V 50/60Hz

Dimension:

l Instrument: 532mm*500mm*520mm

l Package size: 696mm*576mm*696mm

l N.W/G.W: 28kg/32kg
