Test Items | Measuring Range | Unit |
pH(CH) | 6.000~9.000 | pH scale |
pCO2 | 1.607~26.67 | kpa |
8.0~200.0 | mmHg | |
pO2 | kpa | kpa |
0~800.0 | mmHg | |
K | 0.5~15.0 | mmol/L |
Na+ | 20.0~200.0 | mmol/L |
Cl- | 20.0~200.0 | mmol/L |
Ca++ | 0.3~5.0 | mmol/L |
Hct | 12.0~65.0 | % |
B.P. | 500~800 | |
Glu | 1.1~66.7 | mmol/L |
Lac | 0.4~30.0 | mmol/L |
Derived(Calculated) Parameters | ||
pH(TC) | pH Temperature Corrected | |
pCO2(TC) | pCO2 Temperature Corrected | |
pO2(TC) | pCO2 Temperature Corrected | |
TCO2 | Total Carbon Dioxide | |
HCO3 | Actual Plasma Bicarbonate | |
BEb | Base Excess in Blood | |
BEecf | Base Excess Inextra Cellular Fluids | |
SBC | Standard Bicarbonate | |
So2% | Calculated Oxygen Staturation Percentage | |
Ca++(7.4) | Ionized Calcium Normalized’’ to pH 7.4 | |
TCa | Total Calcium Content | |
AG | Anion Gap | |
RI | Respiratory Index | |
AaDO2 | Alveolar Artillery Oxygen Gradient | |
O2SAT | Oxygen Saturation | |
tHb(c) | Hernoglobin (Calculated) | |

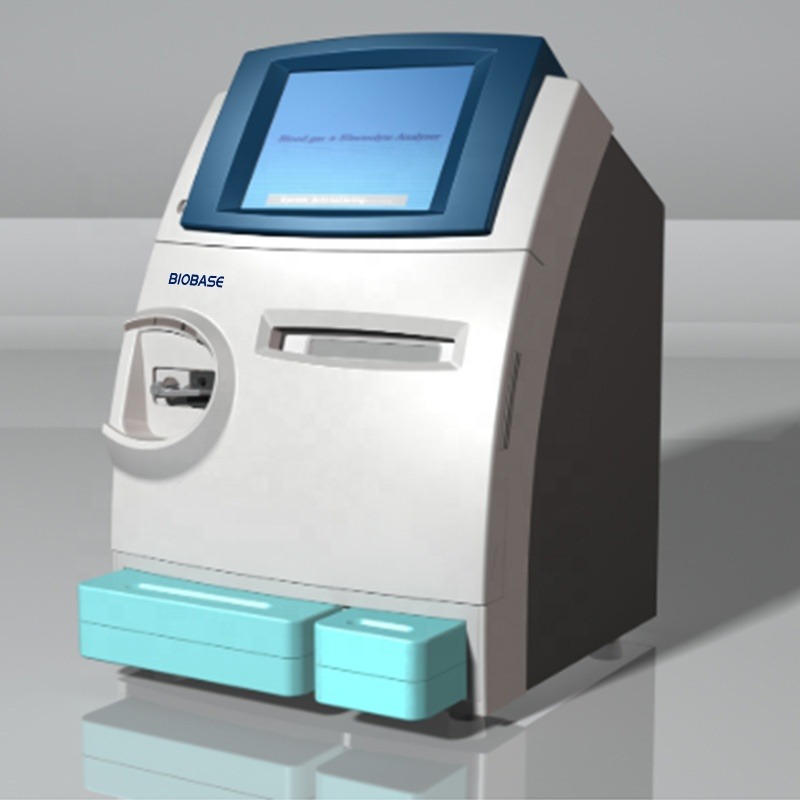

Model | BGE-800Series |
Sample | Whole blood, Serum, Plasma, Dialysate, CSF |
Input Parameters | Patient Temperature, Hemoglobin, FiO2, B.P. |
Analysis Time | ＜90s |
Sample Volume | 95μl (whole blood),35μl (capillary blood) |
Calibration | Automatic, Programmable, One-point and Two-point |
Data Storage | More than 10,000 results |
Display | 10.4'' TFT Touch Screen |
Battery | Leadacidbattery,2.3Ah |
Printer | Build inthermalprinter, 70mm |
Barcode Reader | Up to 14 Kindsbarcodetype |
Interface | Serialline RS-232 |
TCP/IPinterface | |
USBport | |
Integratedbar-code reader | |
Working Conditions | PowerSupply:AC220±10% 50/60Hz; 110±10% 60Hz;150W |
Temperature:15℃~30℃ | |
Storage Environment:5~45℃ | |
Package Size(W*D*H) | 800*680*640mm |
Gross Weight | 50kg |
ReagentPackage Size | 320*460*370mm |
ReagentGross Weight | 7kg |
