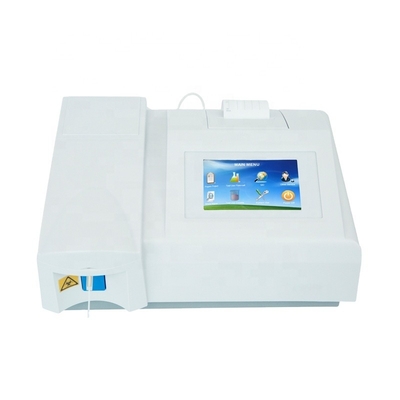

Cost-effective 7inch color LCD display portable semi automatic blood chemistry analyzer machine ZT-CM-2B

Feature of Cost-effective 7inch Color LCD Portable Semi Automatic Blood Chemistry Analyzer machine:
7 inch Color LCD , Touch screen
Flow cell and Cuvette test mode compatible
Real time curve showing
7 wavelength , 90 test item pre-programmed
Memory for 10,000 sample results
Light source hibernate function making lamp life longer
RS232 interface, PC connecting

Specification of Cost-effective 7inch Color LCD Portable Semi Automatic Blood Chemistry Analyzer machine:
Test mode: Kinetic, End point, Two point, Absorbance
Wavelength: 7 standard filters, 340, 405, 492, 510, 546, 578, 630 nm, 1 free position
Wavelength precision: ±2 nm, width ≤ 10nm
Absorbance range: 0~4.500 Abs
Absorbance precision: outside 0.0001 Abs , inside 0.00001 Abs
carry over: < 1%
Repeatability CV: < 1%
Incubator: 37℃,30℃,25℃,Precision : ±0.1℃
Sample volume: 0~3000 uL (≥500uL recommend)
Data Storage: ≥10000
Quality control curve: ,SD,CV%,L-J quality control curve for every test item
Flow cell: 32 uL quartz glass, 10 mm
Lamp: Philips 6V 10W Halogen Lamp with long life
Screen: 7 inch color LCD
CPU: ARM series high speed micro CPU
Printer: Internal thermal sensitive printer
Interface: RS-232
Work Environment: Temperature 0℃ ~ 40℃, Humidity: ≤80%
Power supply: 100~240VAC,50-60Hz,100VA
Dimension: 340(L)*270(W)*160(H)
Weight: 5 kg

Usual test list
Liver function:
ALT AST ALP T-BIL D-BIL TP ALB TTT CHE Nh3
Renal function :
BUN CRE UA URE CO2-CP γ-GT
Lipids:
T-CHO TG HDL-C LDL-C
Cardiac function:
CK CK-MB LDH
Immune proteins:
IGA IGG IGM C3
Others:
GLU HGB AMS
