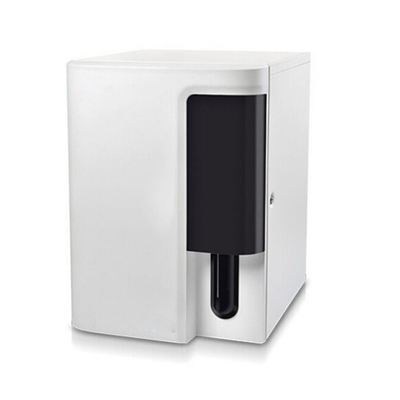

MY-B006J medical lab cbc machine blood cell counter fully automatic 5 part difference hematology analyzer with up to 100 reagent

Maya Medical have rich experience to build up the new hospital and new clinic , our one-stop service is your best choice !

We concentrate on African market and set up two branches in Nigeria and Madagascar. Meanwhile, we have already established after-sale service office in Lagos Nigeria, Islambad Pakistan and also Neirobi Kenya.

MY-B006J medical laboratory cbc machine 5 part diff fully auto hematology analyzer with reagent

Features
- 5-part differentiation, 29 parameters, 1 3D scatter gram , 3 2D scatter grams and 3 histograms
- Triangle semi-conductor Laser scatter combined with chemical dye method, advanced flow cytometry
- Compact, powerful and affordable
- Only 20ul sampling volume
- Up to 60 samples per hour
- 3 counting modes: venous blood, capillary blood and prediluted
- Capability to flag abnormal samples
- Large storage capacity: up to 100,000 samples

Technical Specifications

Principles
Impedance method for WBC, RBC, PLT counting
Cyanide-free reagent for Hemoglobin test
Flow Cytometry (FCM), Semi-conductor Laser scatter, chemical dye method, independent Basophil channel

Parameters
WBC, Lym%, Lym#,Mon%, Mon#,Neu%, Neu#,Eos%, Eos#, Bas%, Bas#, RBC, HGB, HCT, MCV, MCH, MCHC, RDW-CV, RDW-SD, PLT, PDW, MPV, PCT,and 4 research parameters P-LCC , P-LCR, LIC%, LIC#, ALY%, ALY#
1 3D and 3 2D 3 scatter grams and 3 histograms

Throughput
Up to 60 samples per hour

Sample Volume
Whole Blood: 20ul
Prediluted: 20ul

Test Mode
CBC CBC+DIFF

Performance
Carryover Repeatability Linearity
WBC ≤0.5% ≤2.0% (4-15×109/L) 0.00-300×109/L
RBC ≤0.5% ≤1.5% (3.5-6.0×1012/L) 0.00-8.5×1012/L
HGB ≤0.6% ≤1.5% (110-180g/L) 0-250g/L
PLT ≤1.0% ≤4.0% (150-500×109/L) 0.00-3000×109/L

Data Storage Capacity
Up to 100,000 results including numeric and graphical information

Communication
LAN port supports HL7 protocol

Operating Environment
Temperature: 15oC-30oC
Humidity: 30-85%
Air Pressure: 70-106 kPa

Power Requirement
A.C. 100-240V ≤300VA 50/60Hz

Dimension and Weight
380mm(L) × 450mm(W) × 535mm(H)
Weight: 45kg
