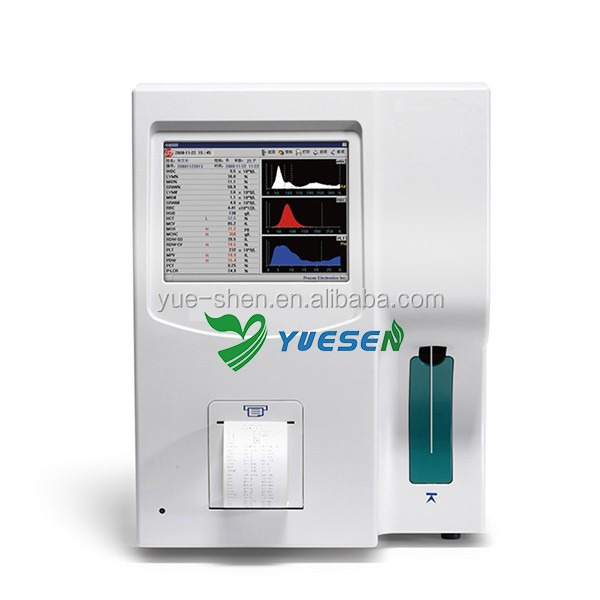

Manufacturer Labolatory CBC Machine Cell Dyne Hematology Analyzers YSTE610 YSTE610

YSTE610 Medical Use Cell Dyn

1) Function: just use 9.6μL of sample, really implement the micro-counting, not need pre-dilution outside the machine

2) Advanced technology of back flush and refluence, keep away from clog. Automatic sample

probe cleaning (inside and outside), without paper wipe. Automatic pipeline soak with operating

the shut-down procedure, removing the protein adhering the counting aperture

3) Fully closed reagent, reduce the pollution of reagent. Auto-lever detection, caution for change

4) Detection parameter:

a) White blood cell count (WBC)

b) Lymphocyte number (LYM#)

c) Mid-cell number (MID#)

d) Granulocyte number (GRAN#)

e) Lymphocyte percent (LYM)%

f) Mid-cell percent (MID)%

g) Granulocytes percent (GRAN)%

h) Red blood cell count (RBC)

5) Technical specifications:

a) Detection principle: electrical resistance for cell counting, cyanide-free

photometric method for HGB

b) Detection parameter: 3-part differentiation of WBC, 20 parameters

c) Work mode: double channels counting and independent hemoglobin

blood detect system

d) Volume of sample: 9.6μL

e) Micro-aperture: WBC: 100μm; RBC/PLT: 80μm

f) Throughput: >60 samples/hour, can run round-the-clock,

automatic stand-by and active

g) Classifying method: fixed terminus, float terminus, artificial adjustment

h) Volume of reagent:

i) Diluent: 20ml/sample

j) Lyse: 0.3ml/sample

k) Cleaner: 4ml/sample

l) Carryover: WBC, PLT, HGB<2%, RBC<1%

6) Quality control: L-J QC diagram, -x, SD, CV%

7) Result storage: automatic storing of all 12,000 sample parameters +3 histograms

8) Reference value defining: adult man, adult woman, child, infant, common, and 3 kinds of user

self-defining

9) Display: color LCD display with 10.4", resolution: 640 x 480

10) Information: including many kinds of information such as: name, department, and inspector

11) Input/output: parallel printer interface, RS232, keyboard interface, mouse interface

12) Operation environment:

a) Temperature: 15 - 35°C

b) Humidity: 10 - 90%

c) Power requirement: AC220V+10%, 50/60+1Hz or AC110V+10%, 50/60+1Hz

d) Weight: 25kg

13) Reagent List:

Hemoglobin (HGB)

Hematocrit (HCT)

Mean cell volume (MCV)

Mean corpuscular hemoglobin (MCH)

Mean corpuscular hemoglobin concentration (MCHC)

Red blood cell distributed width- standard deviation (RDW £­ SD)

Red blood cell distributed width- coefficient of variation (RDW £­ CV)

Platelet count (PLT)

Mean platelet volume (MPV)

Platelet distributed width (PDW)

Plateletcrit (PCT)

Plateletcrit-large cell ratio (P£­LCR)

colorized volume distribution histogram of WBC (WBC Histogram)

colorized volume distribution histogram of RBC (RBC Histogram)

colorized volume distribution histogram of PLT (PLT Histogram)
